Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug

Name: Type 2 Female EV Plug 16A32A63A IEC 621962 Female EV Connector For Electric Vehicle EV Charging Car Side Plug
Brand: Evoyage
Price: 1 USD

Wholesale Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug from china suppliers

Place of Origin : Sichuan, China

Model Number : EV32AP

Brand Name : Evoyage

Packaging Details : Type 2 AC EV Charger Connector Female EV Plug packing: Standard export carton box

Supply Ability : 10000 Piece/Pieces per Week

MOQ : 2 pieces

Price : Negotiable

Delivery Time : 7-15 working days

Purpose : for replace/repair

Condition : New

Type : Outlet, Plug, Type2, IEC62196-2, Ev Charger

Product Name : Plug, Type2, EV charger, EV charging cable, ev connector

Application : Electric Vehicle Car Charging

Rated current : 16/32/63A

Rated voltage : 240-415V

Standard : IEC62196-2

Mechanical life : 10000 Times' Plug In/off

Function : EV Car Charger

Material : Thermoplastic

Warranty : 1 Year

Contact Now

Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug

Product Description

Type 2 16/32/63A EV Single Phase Female IEC 62196-2 EV Connector For Electric Vehicle EV Charging Plug

This type 2 female ev charging plug is suitable for self-built Mode 2 Portable EV Charger and Mode 3 EV charging cable.

With the components offered here, you can mount a complete charging cable with self-assembly accessories.

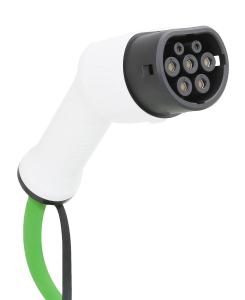

Female Type 2 EV Charging Plug
The plug’s robust construction and silver plated contacts assure a reliable connection. The ergonomic design and quality

ensure that the plug can last for many years.

· IP54 weatherproof with ergonomic handles makes the EV Charging leads easily stored

· Designed to be used on EV charging cables with 22kW capacity

· 32A

· Type 2 plug designed to fit into the male EV car sockets

· Durable casing with 12 month warranty

· Built to last for 10,000 mating cycles

· TUV certified cable and connectors meeting Australian and European standards

Type 2 16/32/63A EV Single Phase Female IEC 62196-2 EV Connector For Electric Vehicle EV Charging Plug

Product name	Type 2 16/32/63A EV Single Phase Female IEC 62196-2 EV Connector For Electric Vehicle EV Charging Plug
Type	Type 2/IEC62196-2
Operating Temperature	-30℃ to 50℃
IP Grade	IP54
Certificate	CE & TUV Approved

Rated voltage	Rated current	Power	Cable size
240 / 415V AC	63 Amp 3 Phase	15 / 44KW	16mm²
240 / 415V AC	32 Amp 1P/3P	7 / 22KW	6mm²
240 / 415V AC	16 Amp 1P/3P	3 / 11KW	2.5mm²

Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug

2196-2 EV Connector For Electric Vehicle EV Charging Plug

Type 2 Female EV Plug 16A/32A/63A IEC 62196-2 Female EV Connector For Electric Vehicle EV Charging Car Side Plug Images
